FRP Vessel 8×35 – High-Strength Fiber Reinforced Pressure Vessel for Water Treatment Systems
Short Description

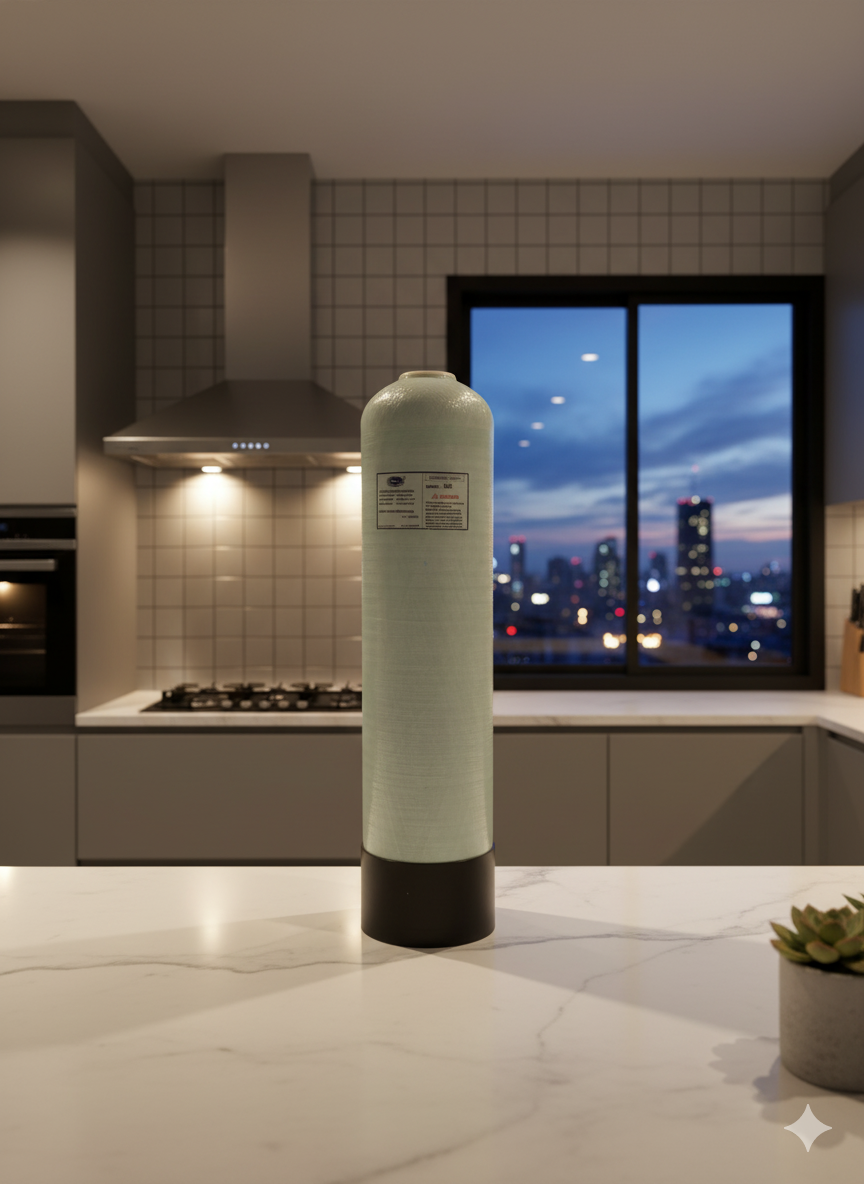

The FRP Vessel 8×35 by Purific is a high-quality fiber-reinforced pressure vessel designed for water filtration, softening, and RO pre-treatment applications. Built with premium-grade fiberglass and epoxy resin, this vessel ensures exceptional strength, corrosion resistance, and long service life — perfect for domestic, commercial, and industrial water treatment systems.
Key Features
- Size: 8″ × 35″ (Diameter × Height) – suitable for medium-capacity water treatment units.
- High-Pressure Design: Handles pressures up to 150 psi, ensuring consistent performance.
- Corrosion-Free Material: Made of durable FRP (Fiber Reinforced Plastic) for long-lasting use.
- Lightweight & Easy to Handle: Easier to install than stainless steel or carbon steel tanks.
- Non-Toxic & Safe: Internal polyethylene liner ensures clean, contamination-free water contact.
- Multi-Purpose Application: Ideal for softeners, sand filters, carbon filters, and multi-media filtration.
- UV & Chemical Resistant: Built for outdoor or industrial conditions.
- Compatible with Automatic or Manual Control Valves.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FRP Vessel 8×35 |
| Shell Material | FRP (Fiber Reinforced Plastic) |
| Inner Liner Material | Food-Grade Polyethylene (PE) |
| Diameter | 8 inches (≈ 203 mm) |
| Height (without base/valve) | 35 inches (≈ 889 mm) |
| Top Opening | 2.5″ NPSM (Standard Thread) |
| Base Type | 2.5″ Threaded Opening / Flat Base |
| Working Pressure | Up to 150 psi (≈ 10.3 bar) |
| Testing Pressure | Up to 225 psi (≈ 15.5 bar) |
| Operating Temperature Range | 1 °C – 49 °C |
| Maximum Vacuum | 5″ Hg |
| Recommended Flow Rate | 1,000 – 2,500 LPH (depending on media type) |
| Color | Blue / Natural / Grey (Depending on Stock) |
| Connection Type | Top-Mounted Valve or Side-Mounted Valve (Optional) |
| Approx. Weight (Empty) | 4–5 kg |
| Country of Technology | American / International Standard Design |
| Certifications | NSF / CE / ISO Certified Manufacturing |
Applications
- Sand Filtration Units
- Activated Carbon Filters
- Water Softeners
- Iron & Manganese Removal Systems
- RO Plant Pre-Treatment Units
- Demineralization (DM) and Deionization (DI) Systems
Benefits
✅ Corrosion-proof and maintenance-free design
✅ Lightweight yet extremely strong construction
✅ Easy to install and transport
✅ Safe for both potable and industrial water applications
✅ Compatible with multiple filtration media
✅ Long-lasting performance even in harsh water conditions
What’s Included
- 1 × FRP Vessel 8×35
- Top Opening (2.5″ NPSM)
- Base Support Stand (if applicable)
- Protective Cap
- Control valve and media sold separately.
Installation Notes
- Mount the vessel vertically on a stable surface or base stand.
- Use compatible automatic or manual control valves.
- Fill the tank with proper filtration media (sand, carbon, resin, etc.) as per system design.
- Do not exceed maximum pressure and temperature limits.
- Avoid exposure to direct sunlight for long periods unless UV-protected coating is used.
Maintenance Tips
- Periodically inspect vessel for cracks or leaks.
- Ensure O-rings and threaded joints are sealed properly.
- Drain and clean annually to maintain peak performance.
- Replace internal liner or O-rings as per manufacturer’s recommendation after prolonged use.
